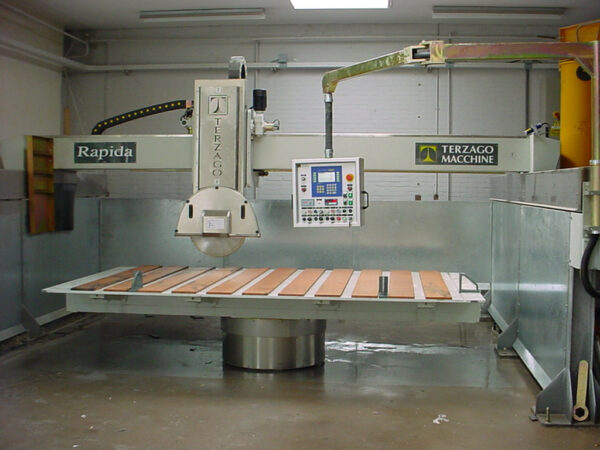

Automatic Bridge Saw Machine.
Bridge saw machine with main parts built-in cast iron, supplied with a PLC of easy and intuitive use to program slabs cutting and cuts and movement.
It is possible to execute linear shaping.
Manual table rotation and head tilting
Description
- Cheap to install (steel or cement walls) and easy to use: for marble, granite, and similar stones.
- Construction built-in cast iron for stability, low resonance, and durability.
- The motor of reduced dimensions co-axial with the blade.
- Blade holder slides electrically powered on bearings; guides well-protected from water and dust.
- Electric bridge translation on sliding rails protected by everlasting belt and guards.
- Mono-axial positioning for bridge translation with encoder.
- Vertical movement of the head with 2-speed self-braking motor on prismatic guides, controlled by the encoder.
- Motorized rotating table, with fixed locks every 90° can be blocked in any position
0° – 360°. - Manual tilting head from 0° to 90° to cut marble and granite even in short passes.
- The PLC with a graphic touch screen allows programming and interpolation of two-axis for concave-convex shaping, contouring, shaving, and control of table rotation.
- Separate potentiometer for left/right slide speed and operational controls.
- Amperometer to protect from use of tools above-accepted tolerances. Electrical cables and cooling water pipes in nylon cable trailer chain.
- Soundproofed blade guard.
Technical Specifications
| Technical Specifications | ||
|---|---|---|
| Blade stroke | mm | 3600 |
| Blade vertical stroke | mm | 400 |
| Bridge translation | mm | 3600 |
| Blade diameter (marble) | mm | 725 |
| Blade diameter (granite) | mm | 450 |
| Cutting depht (marble) | mm | 250 |
| Cutting depht (granite) | mm | 115 |
| Blade holder shaft diameter | mm | 50 |
| Blade block flange diameter | mm | 210 |
| Dimensions of the cast iron table | mm | 1500×3000 |
| Maximum power of the blade motor | kW | 22 |
| Mandrel rotation speed at 50 Hz | rpm | 1435 |
| Adjustable cut speed | m/min | 0 – 17 |
| Machine weight | kg | 4200 |
| Packing volume | mc | 14 |
| Machine dimensions | mm | 5000x5500x2600 |
| Standard Equipment | ||
|---|---|---|
| N° 2 Columns | ||
| N° 1 Photoelectric cell safety barrier |
| Optional Equipment | ||
|---|---|---|
| Laser beam | ||
| Hydraulic tilting table | ||
| Table studs | ||
| Removable wooden table cover | ||
| Blade speed inverter > 22 kW |
