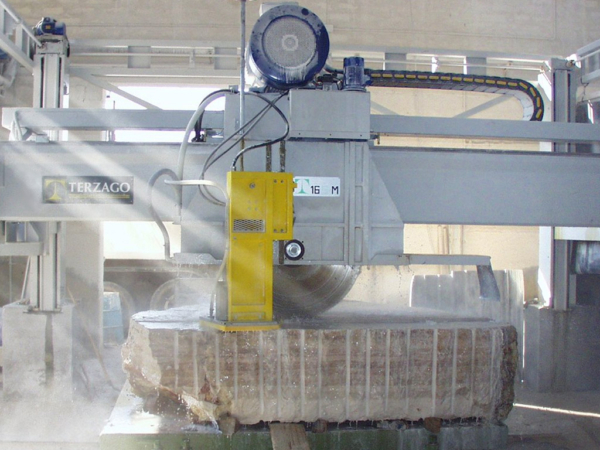

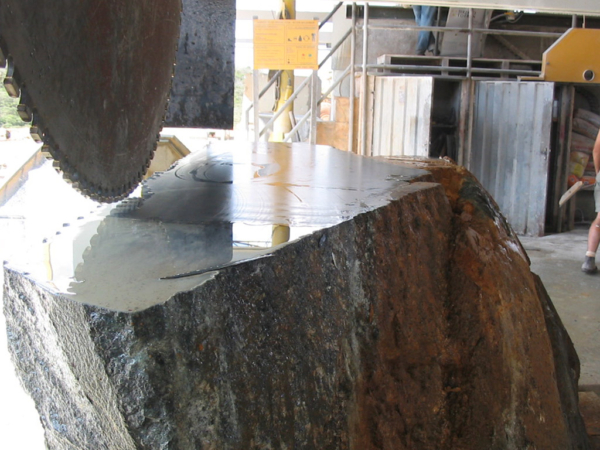

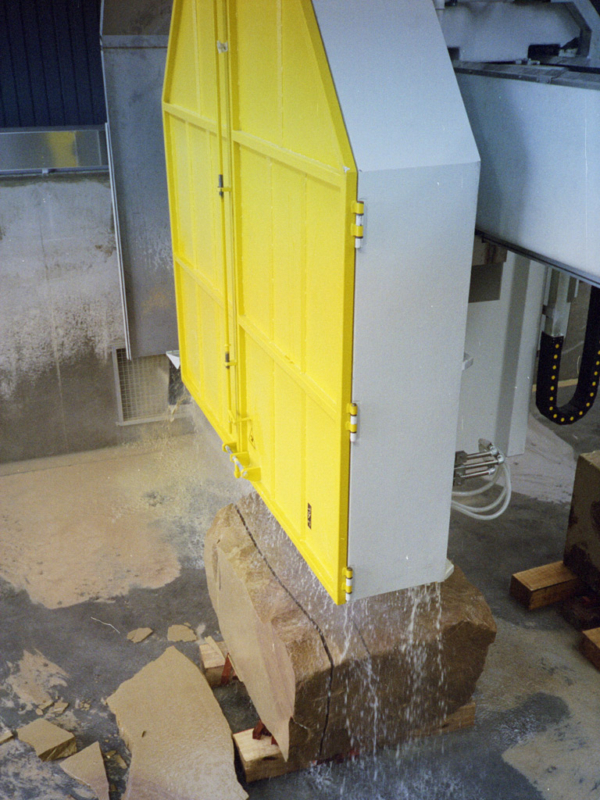

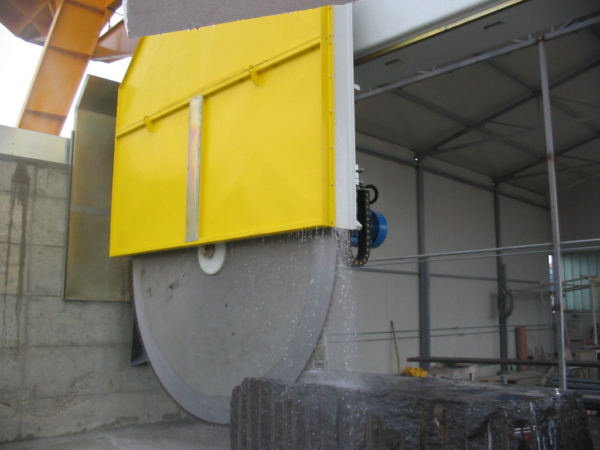

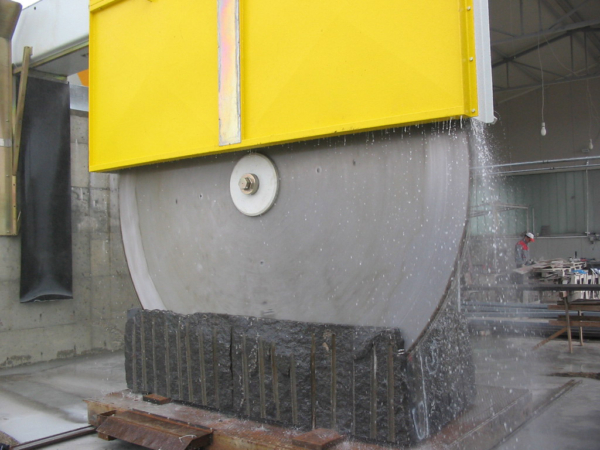

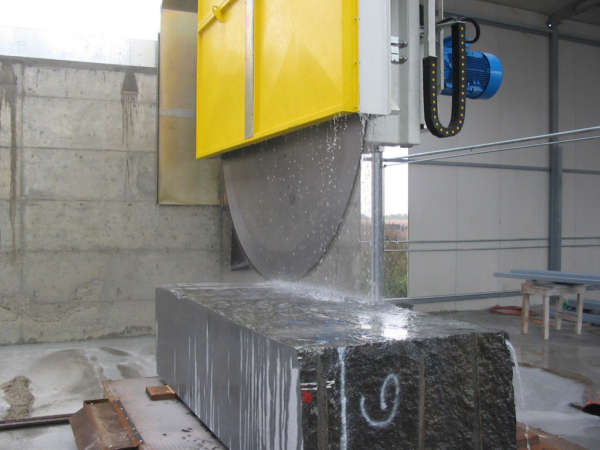

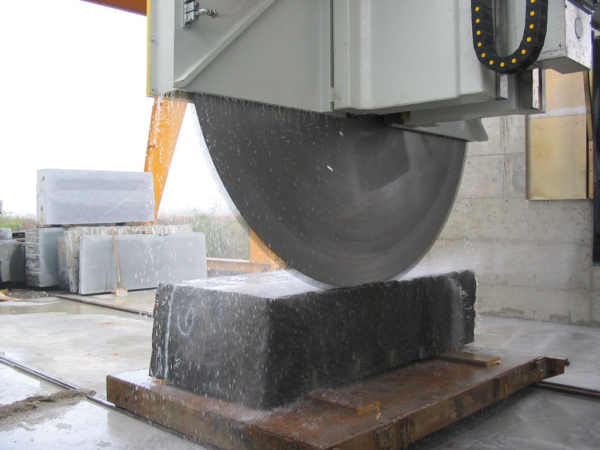

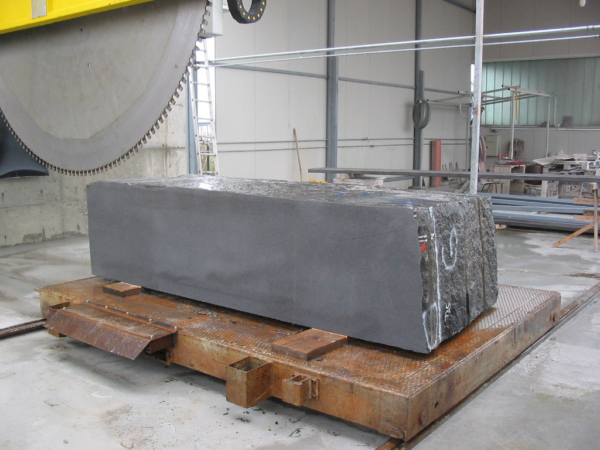

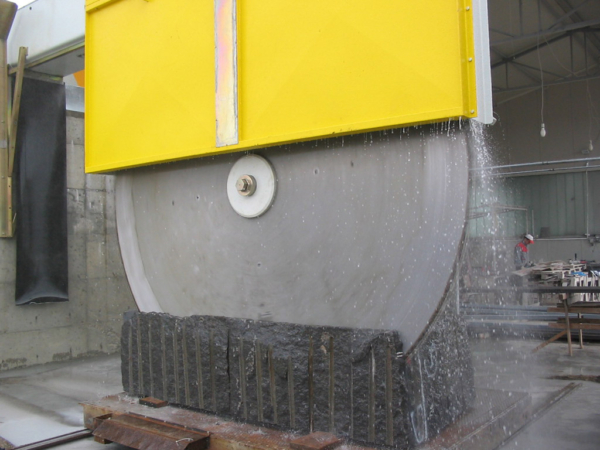

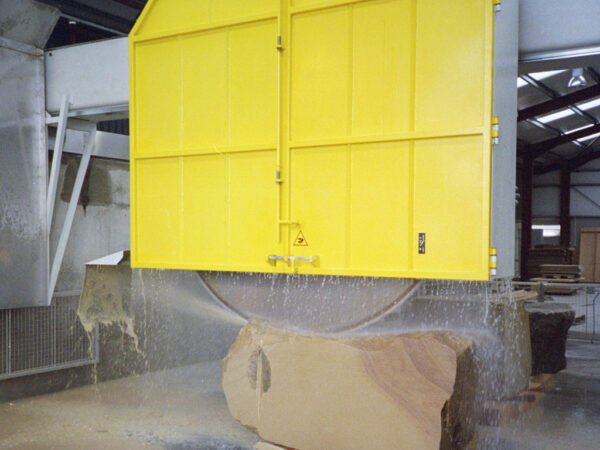

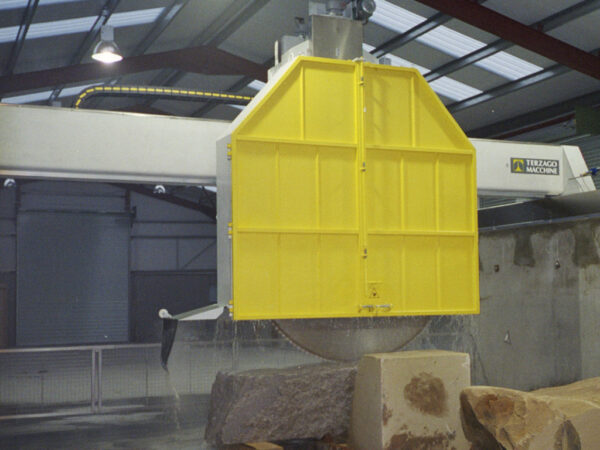

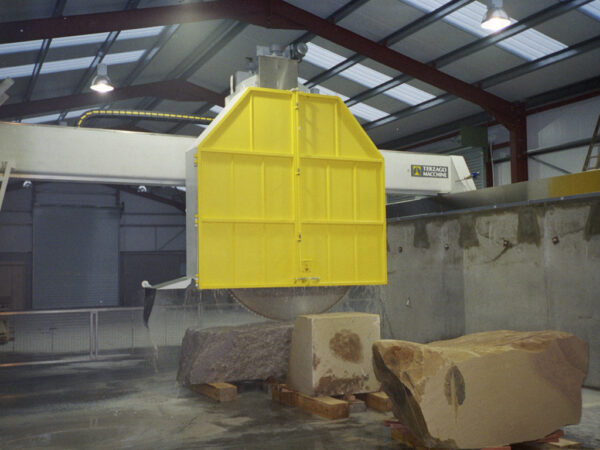

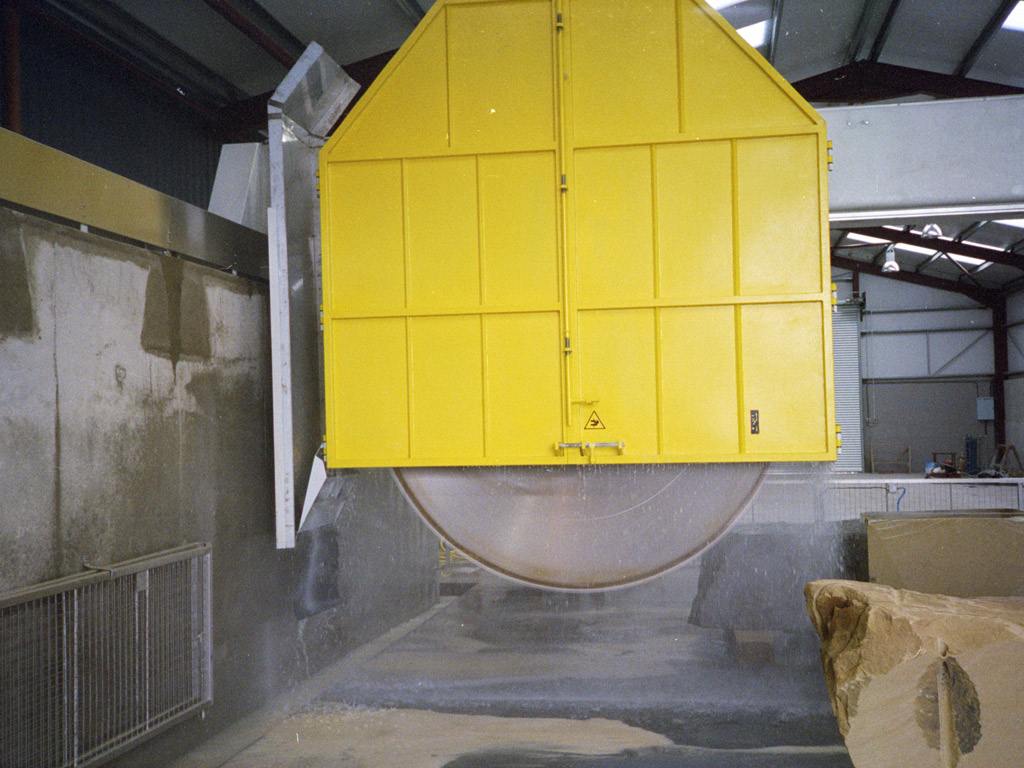

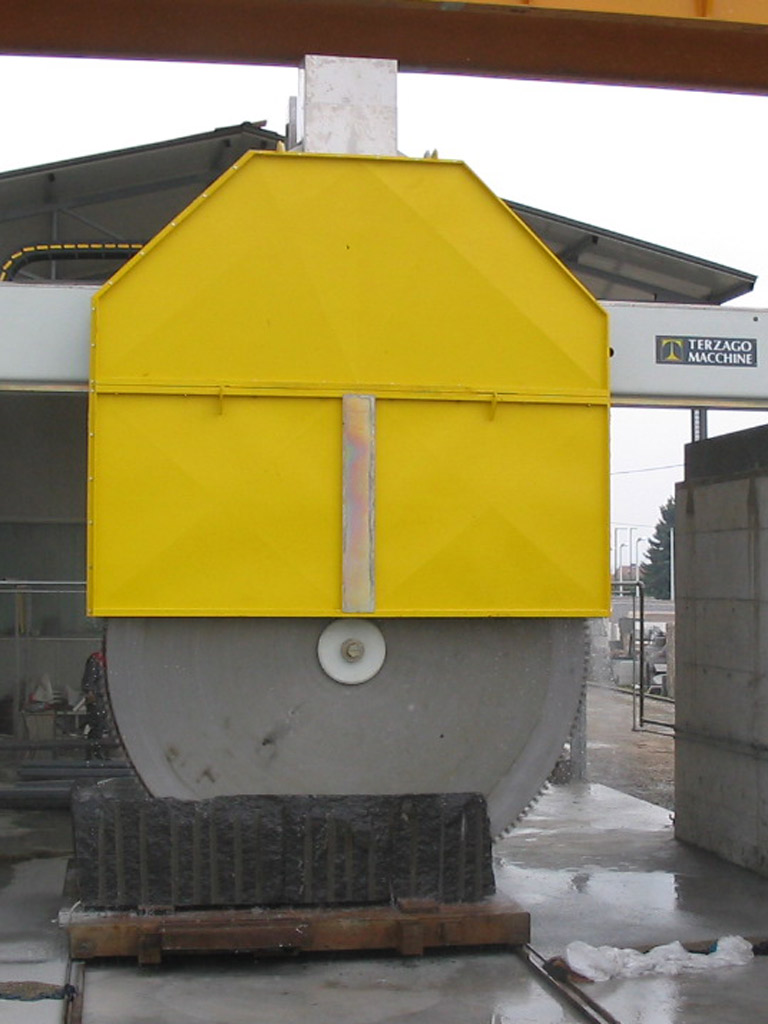

Electronic Giant Disc Saw.
Stability of machine in operation guaranteed by a over dimensioned frame in welded steel.
On the electrical board it is installed the control panel with Touch Screen to visualize alarms, operator instructions and operational parameters for development of correct workyng cycle to be seen in real time.
Description
- Cutting unit with rack/pinion system powered for beam travel by electric gear motor that allows cutting speed selection.
- Bridge translates on bearings with rack/pinion system powered by an electric gear motor with inverter for perfect speeds.
- Head vertical movement with the self-braking motor, on prismatic guides (with guard). Accurate positioning of all axes thanks to the encoder.
- Main transmission through high-performance belts and oil-bathed gear. The inverter provides a spindle rev. changes.
- A mobile control pad can be connected to a water-tight electrical cabinet.
- The terminal on the control panel comprises a display and keyboard and operator instructions, alarms, and operating parameters that can be viewed in real-time.
Technical Specifications
| Technical Specifications | ||
|---|---|---|
| Max. blades diameter | mm | 3600 |
| Blade longitudinal stroke | mm | 4000 |
| Bridge translation | mm | 12000 |
| Blade vertical stroke | mm | 1750 |
| Blade shaft diameter | mm | 110 |
| Max. cutting depht | mm | 1250 |
| Adjustable slide forward speed | m/min | 0 – 18 |
| Blade motor power | KW | 92 |
| Water consumption at 3 bar | l/min | 200 |
| Weight | kg | 13000 |
| Standard Equipment | ||
|---|---|---|
| N° 1 Photocell safety barrier | ||
| N° 1 Inverter | ||
| N° 1 PLC with graphic touch screen |
| Optional Equipment | ||
|---|---|---|
| N° 1 Photocell safety barrier |
